Varistor Selection for Emerging Power Electronics: Safeguarding AI Data Centers, EV Charging, ESS, and Robotics
Suntan Technology Company Limited
· High-Reliability Circuit Protection & Electronic Components Manufacturer
In contemporary power electronics, fast semiconductor switching, lightning strikes, and utility grid load switching generate continuous high-voltage spikes and inductive kickbacks. When consulting a varistor datasheet, engineering and procurement teams must evaluate key operational parameters: continuous operating voltage (VRMS / VDC), nominal varistor voltage (V1mA), maximum clamping voltage (VC), peak surge current tolerance (8/20 μs), energy dissipation capability (Joules), and parasitic capacitance limits.

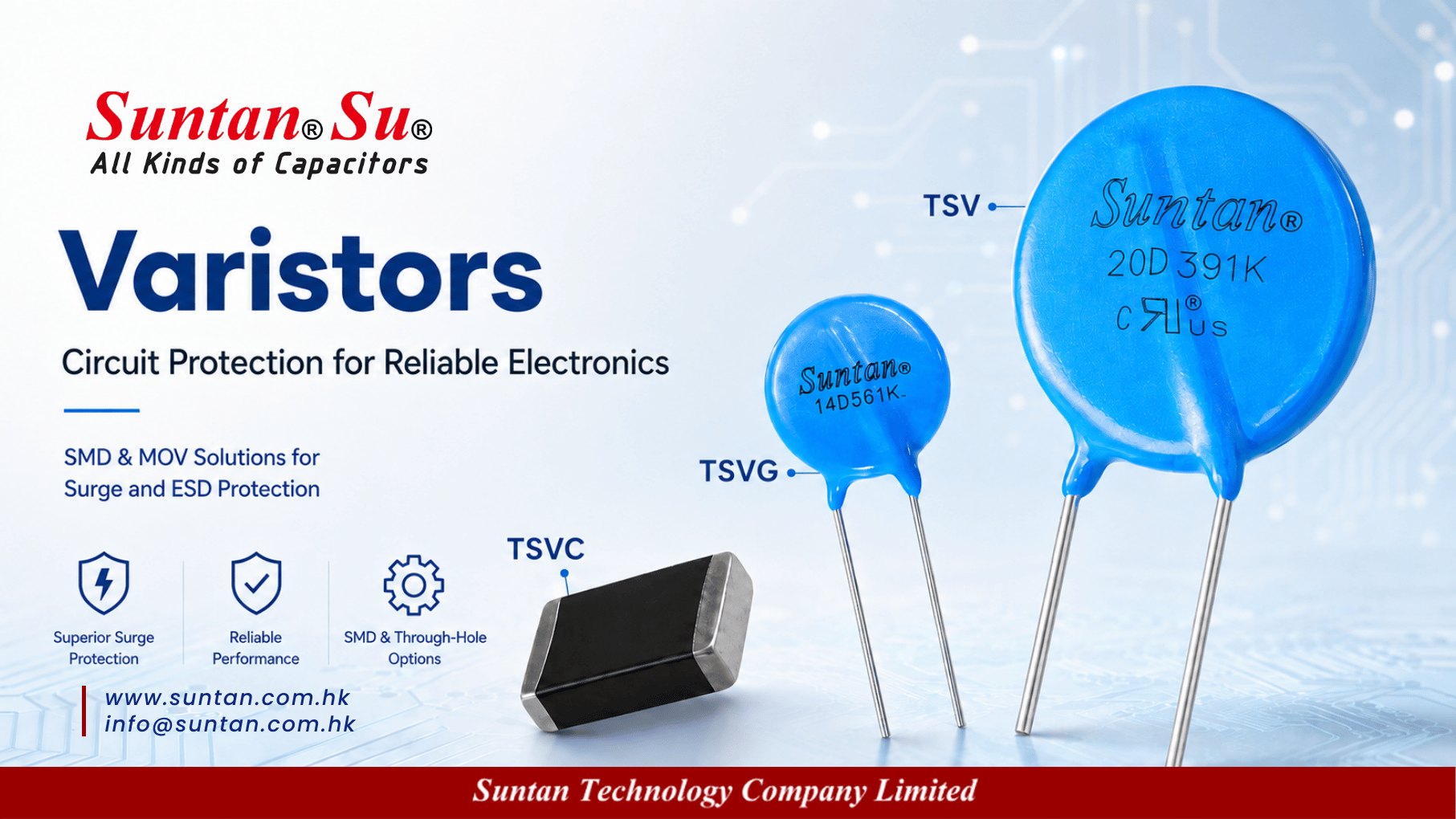

Figure 1: Suntan® varistor lineup spanning standard TSV zinc oxide MOVs, high-temperature TSVG, and TSVC surface-mount chip varistors.
Targeted Protection Roles in Emerging Power Electronics
Varistor technology must match the specific surge environment, voltage margins, and thermal boundaries of next-generation power electronics:
TSV & TSVG Series — Primary AC Input & Power Shelf Protection
48V bus architectures and high-density GPU server racks encounter continuous grid ringing and fast load transients. Robust 14D and 20D MOVs absorb high-energy line surges, protecting primary power supplies and uninterruptible power units (UPS) from premature failure.
TSVG Series — High-Temperature & Outdoor Surge Endurance
Outdoor EV charging piles and solar PV storage combiners face severe ambient thermal swings (-40°C to +105°C) and lightning transients. Upgraded TSVG varistors deliver superior Joule energy absorption to prevent thermal runaway.
TSVC Series — Sub-Nanosecond Low-Capacitance ESD Protection
Protects high-speed communication interfaces (USB 2.0/3.0, Ethernet, CAN bus), sensors, and robotic microcontroller boards against IEC 61000-4-2 ESD. Low capacitance options (<4pF) prevent differential signal degradation.
Suntan® Varistor Series Comparison Matrix
Compare core operating specifications, package configurations, and datasheet references across primary Suntan® varistor lines:
| Series Platform | Form Factor & Mounting | Electrical Ratings | Datasheet Link |
|---|---|---|---|
| TSV Series | Radial Leaded Disc (5D, 7D, 10D, 14D, 20D) | V1mA: 18V–1800V; 8/20 μs Peak: up to 6,500A (20D); Temp: -40°C to +85°C | Download TSV PDF |
| TSVG Series | High-Temp & High-Surge Leaded Disc (5D–20D) | Extended Temp: -40°C to +105°C; Enhanced surge current endurance & Joule absorption | Download TSVG PDF |
| TSVC Series | Multilayer Surface Mount (0402, 0603, 0805, 1206, 1210) | VDC: 3.3V–68V; Response Time: <0.5ns; Capacitance <4pF (USB compatible); Bidirectional ESD | Download TSVC PDF |
MOV Disc Diameter Sizing Guide (7D, 10D, 14D, 20D)
Disc diameter determines the physical volume of active zinc oxide material, dictating peak current handling (8/20 μs) and energy absorption (2ms pulse). Sizing must balance surge tolerance against board area:
| Disc Size | Peak Surge (8/20 μs, 1-Time) | Energy Absorption (2ms) | Recommended Application Context |
|---|---|---|---|
| 7D (7mm) | 1,200A – 1,750A | Approx. 9J – 30J | Compact auxiliary power supplies, LED drivers, smart IoT meters |
| 10D (10mm) | 2,500A – 3,500A | Approx. 25J – 70J | Desktop power adapters, home appliances, consumer power modules |
| 14D (14mm) | 4,500A – 6,000A | Approx. 50J – 150J | Industrial SMPS, telecom rectifiers, solar microinverters (e.g., 14D471K) |
| 20D (20mm) | 6,500A – 10,000A | Approx. 130J – 360J | Heavy motor drives, EV charging posts, building power entrance (e.g., 20D391K) |
Figure 2: Quality-inspected Suntan® metal oxide varistors and chip varistors packaged for automated assembly lines.
People Also Ask — Varistor Selection & Engineering FAQ
MOV disc diameter (7D, 10D, 14D, 20D) governs peak surge current handling (8/20 μs) and energy absorption (Joules). For compact adapters and small auxiliary circuits, 7D or 10D is standard. For industrial power equipment, outdoor EV charging stations, and AI server power shelves, 14D and 20D models are strongly recommended to endure heavy transient strikes without degradation.
Consult TSV Surge Current Ratings in Datasheet →Follow a three-step selection procedure: 1) Identify the continuous operating voltage (VRMS for AC or VDC for DC) and add a 15% to 25% safety headroom to prevent premature conduction during normal line fluctuations; 2) Choose a nominal Varistor Voltage (V1mA) matching that threshold; 3) Verify that the maximum Clamping Voltage (VC) at expected peak surge currents remains below the maximum breakdown rating of downstream components.
A larger MOV disc (e.g., 20D vs. 10D) provides higher surge current capacity, lower thermal stress, and longer operating life under repetitive surges. However, trade-offs include higher component cost, larger PCB footprint, greater height, and increased parasitic capacitance. Hardware designers must balance required surge robustness against physical layout constraints.
Radial leaded disc MOVs (Suntan TSV and TSVG) are designed primarily for primary AC and DC power lines to absorb high-energy, high-current surges (in the kilo-ampere range). In contrast, SMD multilayer chip varistors (Suntan TSVC) protect low-voltage secondary circuits and high-speed data interfaces (USB, Ethernet, CAN) against fast-rising electrostatic discharge (ESD) and low-energy transients with sub-nanosecond response times.
Review Multilayer SMD TSVC Specifications →For standard 230V AC utility grids, voltage fluctuations can reach 265V AC or higher. Therefore, the varistor's continuous maximum AC voltage (VRMS) must be at least 275V to 300V. Common industry choices include nominal 430V or 470V varistor voltage models (such as 14D431K or 14D471K), depending on localized surge test specifications.
This standard part number code designates:
• 14D: 14mm disc diameter body size;
• 471: Nominal varistor voltage of 47 × 101 = 470V (measured at 1mA DC);
• K: Voltage tolerance of ±10%.
This part number designates a heavy-duty surge varistor:
• 20D: 20mm disc diameter capable of handling up to 6,500A peak surge current;
• 391: Nominal varistor voltage of 39 × 101 = 390V at 1mA;
• K: Tolerance of ±10%. Frequently selected for 220V/240V AC power systems requiring a tight clamping threshold.
Surge handling is evaluated using standard 8/20 μs current pulses. Standard 7D discs manage up to 1,200A; 10D discs handle 2,500A; 14D discs handle 4,500A; and 20D discs handle 6,500A or higher. Upgraded TSVG high-surge series provide enhanced pulse endurance and elevated thermal endurance up to +105°C.
Yes, but selection of the correct construction is critical. While radial MOVs are too slow and excessively capacitive for high-speed data lines, Suntan TSVC Multilayer Chip Varistors are specifically engineered for IEC 61000-4-2 ESD protection, featuring sub-nanosecond response times (<0.5ns) and low parasitic capacitance.
For high-speed communication interfaces like USB 2.0, excessive parasitic capacitance causes severe signal degradation and eye-diagram distortion. According to the Suntan TSVC engineering datasheet, varistor capacitance should be selected below 4pF (with ultra-low capacitance options <1pF recommended for ultra-high-speed differential pairs).
Review Low-Capacitance TSVC Models →A varistor must be positioned as close as possible to the power input connector or entry port, directly downstream of the primary fuse or thermal cutoff. PCB traces connecting to the varistor must be short and wide to minimize parasitic trace inductance, ensuring transient spikes are clamped before propagating into sensitive downstream circuits.
MOVs experience gradual degradation after absorbing repetitive transient energy pulses. Symptoms of aging include increased leakage current, decreased nominal breakdown voltage (V1mA), and elevated steady-state operating temperature. In severe overstress conditions, visible discoloration or body cracking occurs. Incorporating a series thermal disconnect (TMOV configuration) helps prevent catastrophic short-circuit failures at end of life.
Suntan® continues to empower global hardware engineers and purchasing teams by delivering robust, highly reliable zinc oxide varistors and surface-mount circuit protection devices. For cross-referencing support, custom lead formings, or sample kits, please contact our professional engineering team.
