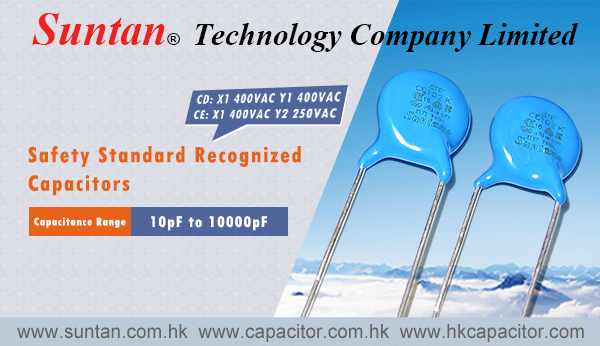

Suntan TS22 Safety Standard Recognized Capacitor - X1 / Y

Suntan Technology Company Limited

This week, we’re going to introduce our Safety Standard Recognized Capacitor - X1 / Y TS22, which are high precision high stability high reliability capacitors.

Ideal for across the line applications
Compact size
Cost effective product
Safety standards recognized

Operating Temperature Range -25°C to +85°C
Capacitance Range 10pF TO 10000pF
Capacitance Tolerance ±10%, ±20%, +80-20%
Rated Voltage AC 125V, 250V, 400V
SUBCLASS CD: X1 400VAC Y1 400VAC
CE: X1 400VAC Y2 250VAC
Temperature Cofficient 2B(Y5P)±10%、2E(Y5U)+22%~-56%、2F(Y5V)+22%~-82%
Dissipation Factor (tan δ) 2B: 2.5% max. at 25℃ and 1 KHz, 1±0.2 Vrms.
Insulation Resistance at 20℃ 2E/2F: 2.5% max. at 25℃ and 1 KHz, 1±0.2 Vrms.
Dielectric Strength 10000MΩat 500VDC for 1 minute. 1500V AC for 60 seconds. (250V AC) & 4000V AC for 60 seconds. (400V AC)

Welcome to contact us to know more about our parts.
