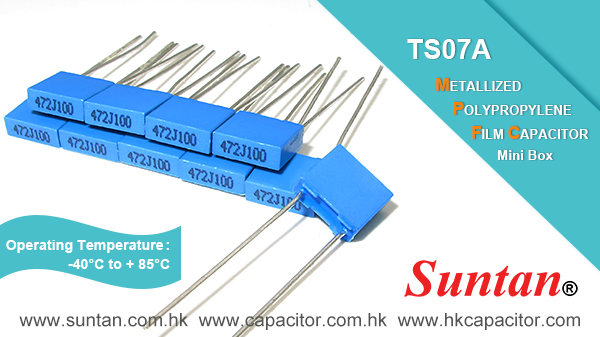

Suntan TS07A Metallized Polypropylene Film Capacitor - Mini Box

Suntan Technology Company Limited

This week, we would like to introduce our TS07A Metallized Polypropylene Film Capacitor - Mini Box, with the features as follows:
High reliability at high current stress.
Self-healing properties.
Flame retardant plastic case and epoxy resin.
Low losses, high dv / dt capability.
High moisture resistance.
High stability of capacitance and long life.

Operating Temperature: -40°C to + 85°C
Raged Voltage: DC 100, 250, 400, 630, 1000V
Capacitance Range: 0.001 to 1µF
Capacitance Tolerance: ±5%
Insulation Resistance: C≦0.33µF ; IR≥50000MOhm
C>0.33µF ; IR≥15000MOhm
Dissipation Factor: 0.1% max. at 1KHz, 20°C
Dielectric Strength: 160% of rated voltage for 60s.

Welcome to contact us to know more about our parts.
