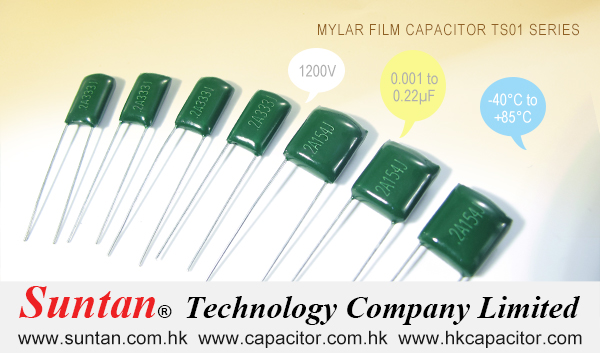

Suntan Mylar Film Capacitor TS01 Series

Suntan Technology Company Limited

  • ---All Kinds of Capacitors
  • We introduce our Mylar film capacitor TS01 series, which could be used in lighting industry widely.
    Here are the features as following:

    1. Good reputation in use with consumer & industrial electronics.
    2. Optimum for automatic insertion due to their small size and light weight.
    3. Coated with epoxy resin for superior heat resistance, humidity resistance and solvent resistance.

    Operating Temperature -40°C to + 85°C
    Rated Voltage DC 100V,250V,400V,630V,1000V,1200V
    Capacitance Range 0.001 TO 0.22µF
    Capacitance Tolerance ±5%, ±10%, ±20%
    Insulation Resistance 0.1μF ≤30,000 MΩ; Min, >0.1μF >15000 MΩ;
    Dissipation Factor ≤0.1 (at 1KHz)
    Dielectric Strength 200% of rated voltage for 5sec.

    Welcome to contat us to know more about it.
