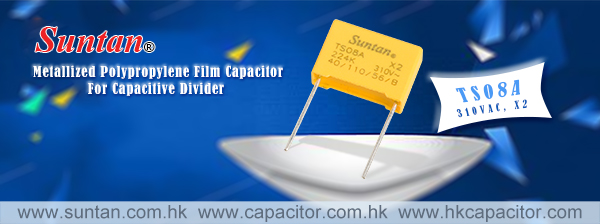

Suntan Metallized Polypropylene Film Capacitor For Capacitive Divider X2 TS08A

Suntan Technology Company Limited

  • ---All Kinds of Capacitors
  • This week, we would like to introduce our 310VAC Metallized Polypropylene Film Capacitor For Capacitive Divider - X2- TS08A, with the features as follows:
    Suitable for applications in serial with the 100~240VAC mains
    Applications such as energy meter, a small power LED driver module, small household electrical appliances control panel (electric kettle, electric cooker, coffee machine, hair straightener etc.), thermostat, replace the transformer.

    Voltage Rating: 310 VAC
    Capacitance Range: 0.0022 – 2.2uF
    Capacitance Tolerance: ±10% std.
    Operating Temperature: -40°C to 110°C
    Testing Voltage: 4.3UR DC /60s
    Dissipation Factor:
    0.0010μF≤CR≤0.47μF ≤0.1% (1KHz,20℃)
    0.47μF≤CR≤1.0μF ≤0.2% (1KHz,20℃)
    1.0μF≤CR≤10μF≤0.3% (1KHz,20℃)
    Insulation Resistance:
    CR≤0.33μF, I.R≥15,000MΩ
    CR>0.33μF, I.R≥5,000S (20℃,100V,1min)
