Suntan High Voltage Ceramic Capacitors - TS16

Suntan Technology Company Limited

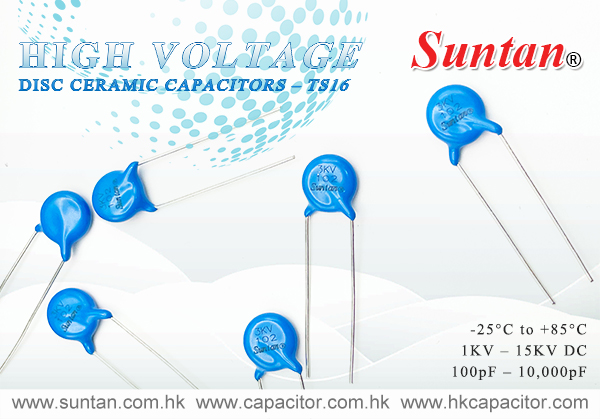

This week, we would like to introduce HIGH VOLTAGE DISC CERAMIC CAPACITORS – TS16, with below features:

Use for coupling, and by-pass circuit there are a stable and high reliability products.

Operating Condition Range: -25°C to +85°C
Rated Working Voltage: 1KV – 15KV DC
Capacitance Range: 100pF – 10,000pF
Test Voltage: UR≤500V, U=2.5UR；UR>500V≤6KV, U=1.5UR+500V；
UR>6KV≤15KV, U=1.5UR
Insulation Resistance: YL/SL/NPO:≥10GΩ
Y5R/Y5P/Y5U/Y5V/Y5T: CR≤25nF,≥4000MΩ, CR＞25nF，Rj.CR≥100s

Welcome to contact us to know more about our parts.
